Drinking Water Solution, Under-Counter Sparkling Water Dispenser

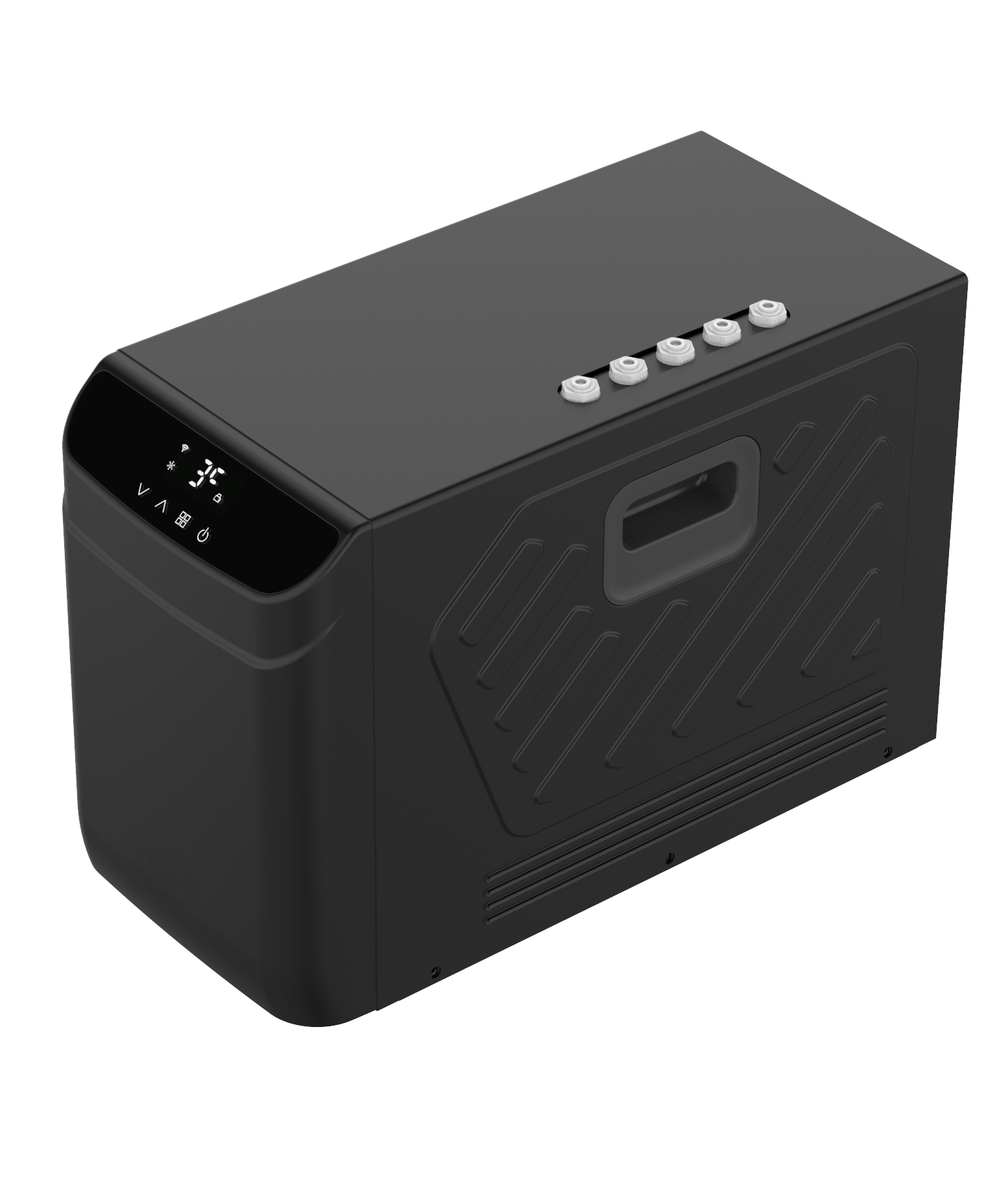

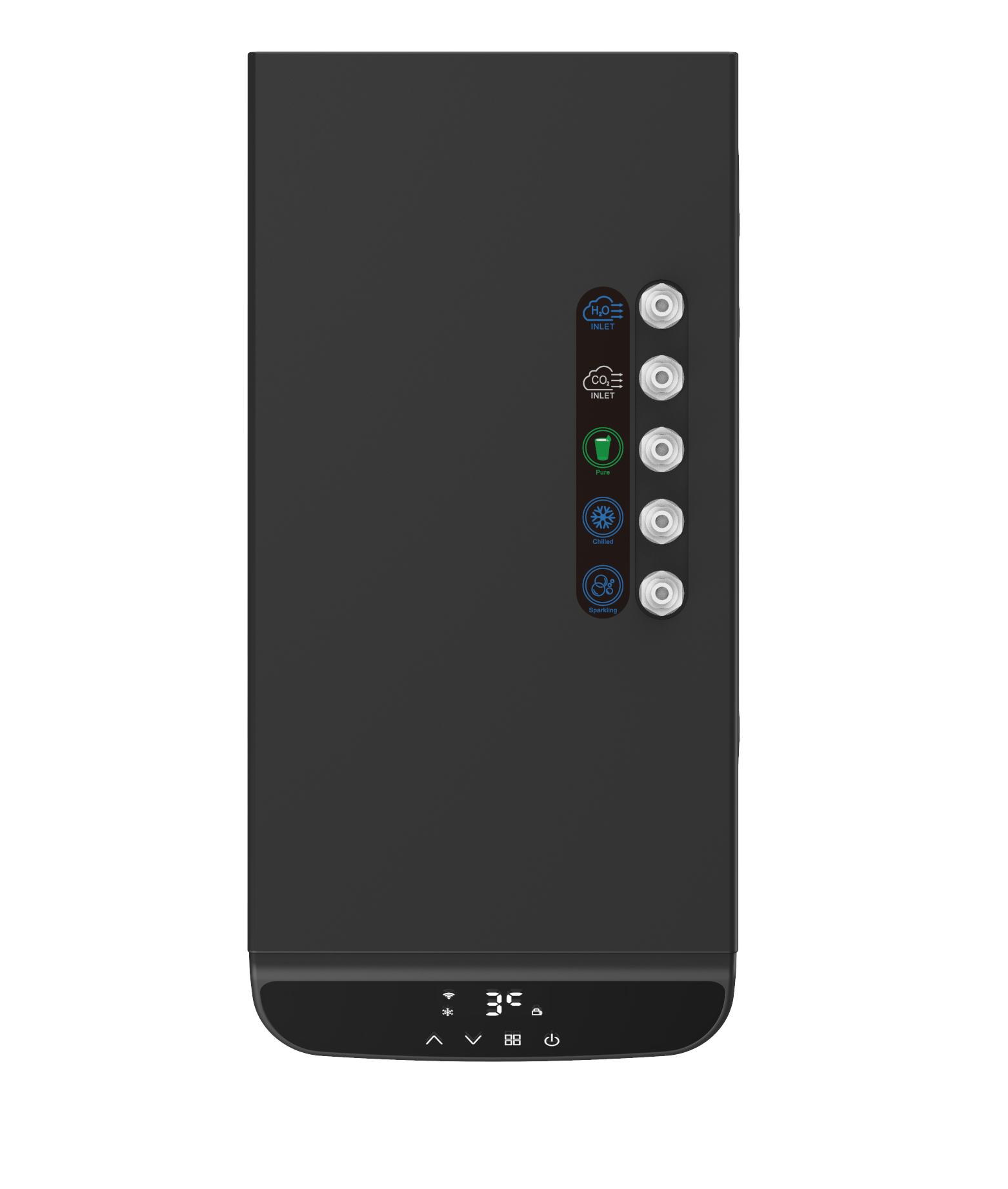

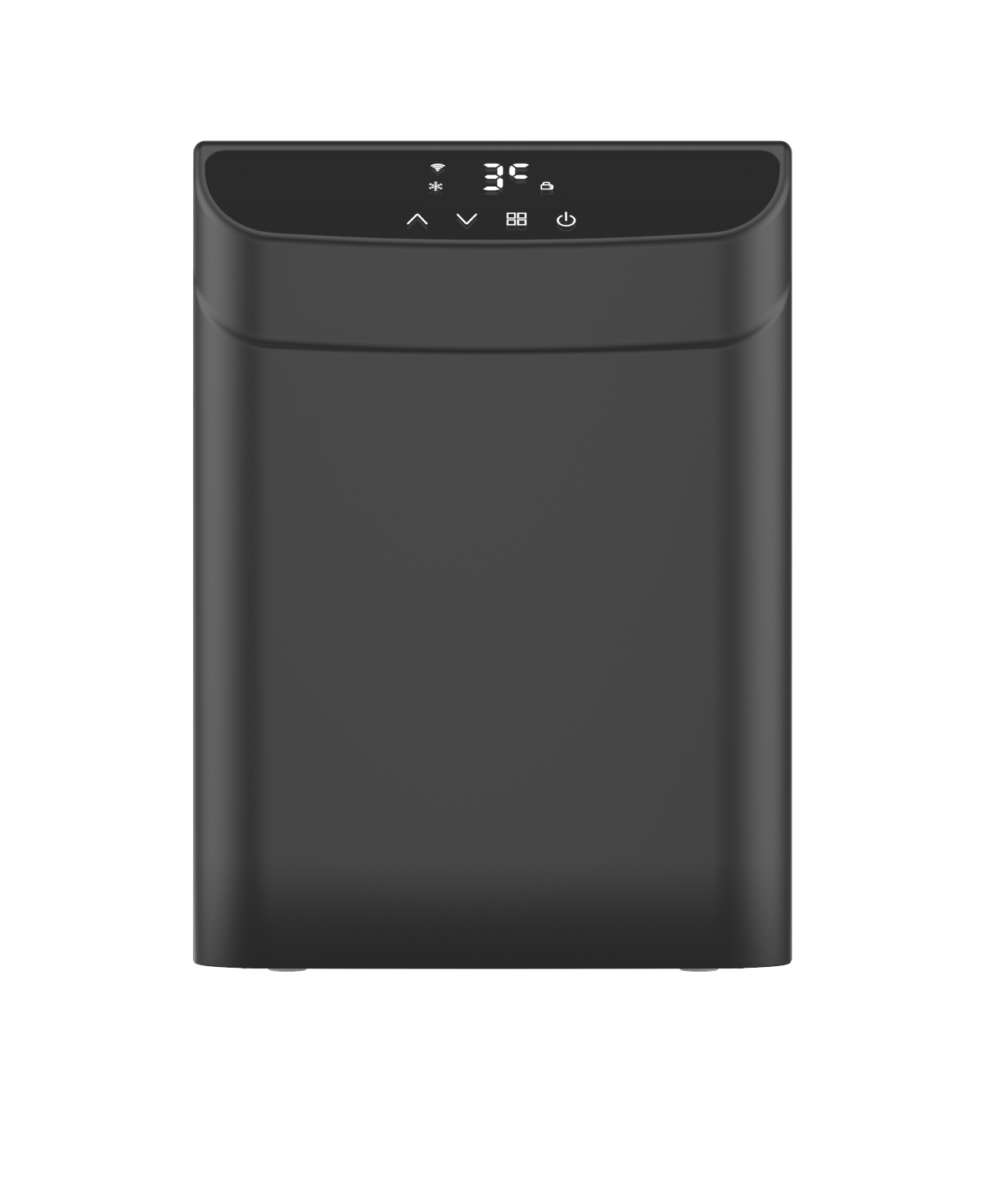

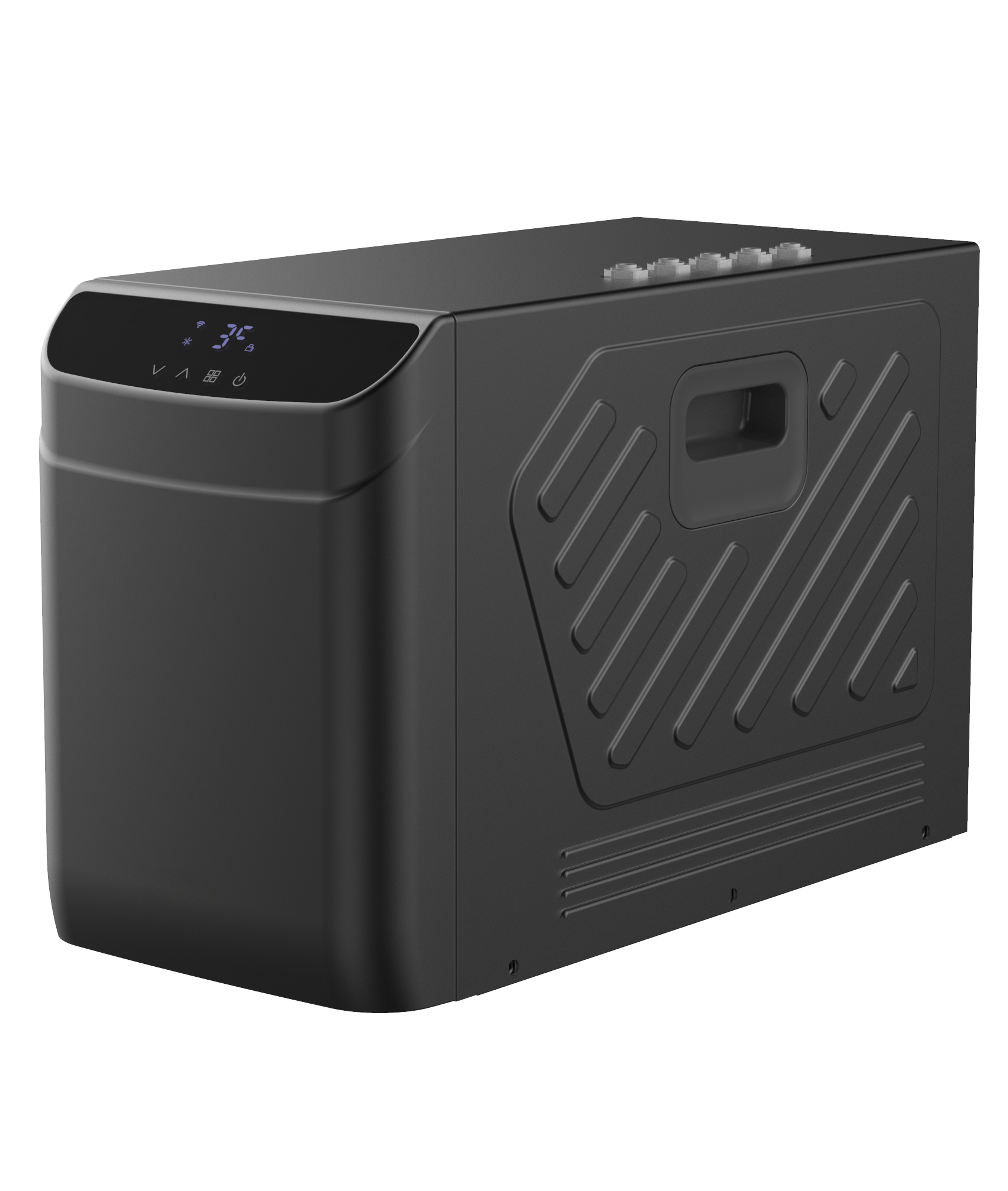

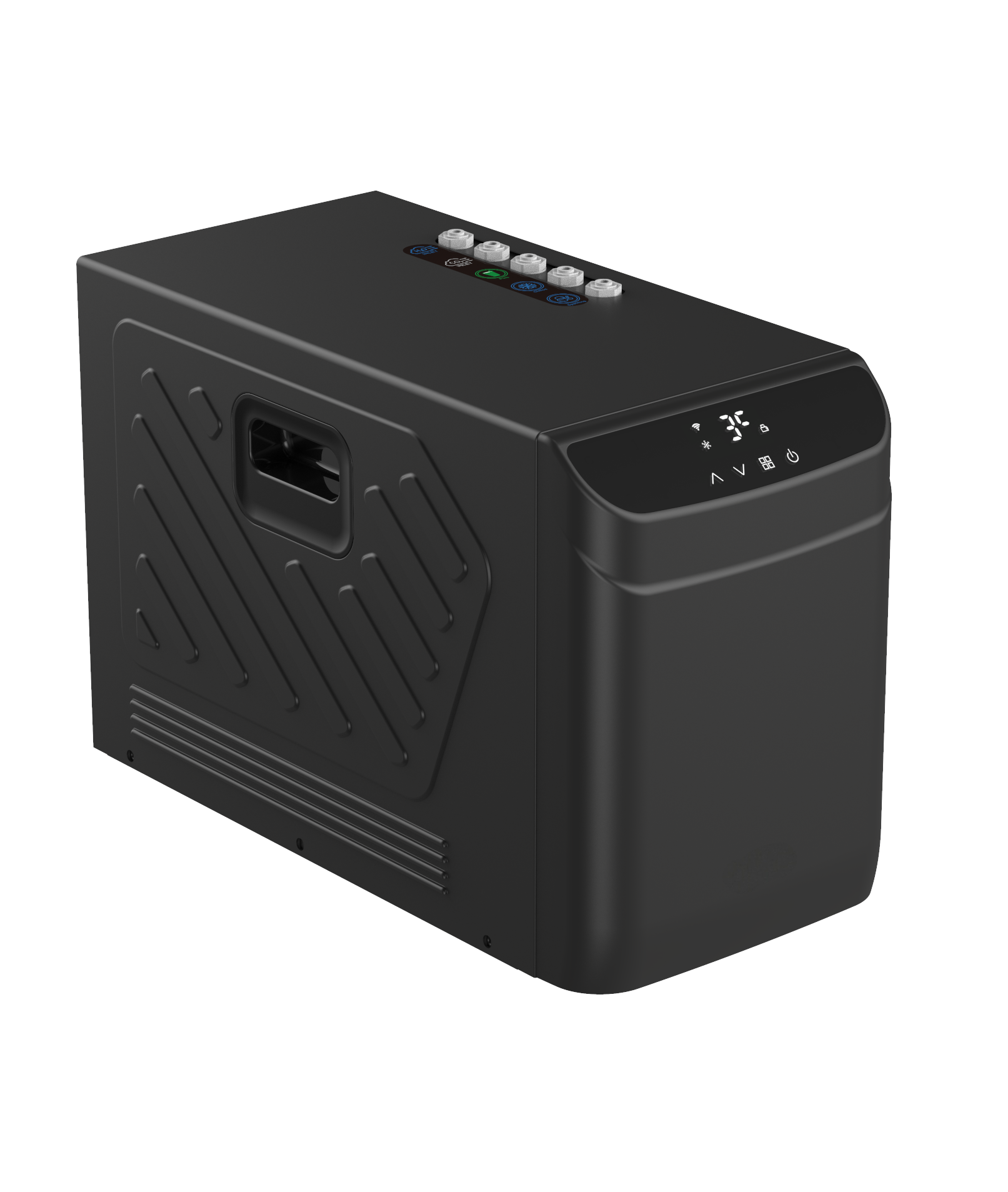

Sparkling Chilled Water Dispenser -C

  • The Wintemp under‑counter Sparkling Water Dispenser – a 3-in-1 all-in-one tap system delivering chilled, sparkling, and filtered water for home or commercial use.
  • With 26L/h cooling capacity, adjustable 3–15℃ temperature, ECO R290 refrigerant, and high flow rate up to 2.7L/min, this space-saving under-sink unit features stainless steel faucet, Tuya APP smart control, quiet operation ≤45dB, and RO system compatibility.
  • Perfect for kitchens, offices, and cafes seeking a reliable carbonated water maker.
  • 120V
  • 220-240V
  • 3-in-1 faucet（Mechanical）3-in-1 faucet（Mechanical）
  • 5-in-1 faucet（Mechanical）5-in-1 faucet（Mechanical）
  • 3-in-1 faucet（Electronic）3-in-1 faucet（Electronic）
  • 4-in-1 faucet（Electronic）4-in-1 faucet（Electronic）
  • Rubber Gasket x1
  • Stainless Steel Washer x1
  • Fixing Nut x1
  • (M6*18) Round Head Phillips Screw x2
  • Plastic Three-way Valve X1
  • Plastic Three-way Ball Valve X1
  • Plastic Three-way Ball Valve X1
  • Blue Locking Clip x4
Inquiry Now

Product Detail

WINTEMP Under-Counter Sparkling & Chilled Water System is engineered for modern lifestyle hubs, premium office lounges, and upscale hospitality environments. Featuring a high-performance under-counter carbonation unit and an intuitive electronic faucet, it provides a seamless transition between chilled, still, and sparkling water while maintaining a sophisticated, minimalist countertop. With an advanced cooling capacity of up to 26L/h and adjustable CO2 saturation levels, it is the ultimate solution for residential wellness upgrades and commercial refreshment stations. Supporting rapid-chill technology and multi-stage safety sensors, it offers a refined hydration experience for projects that prioritize health, convenience, and sustainable luxury in every drop.
Download the image library

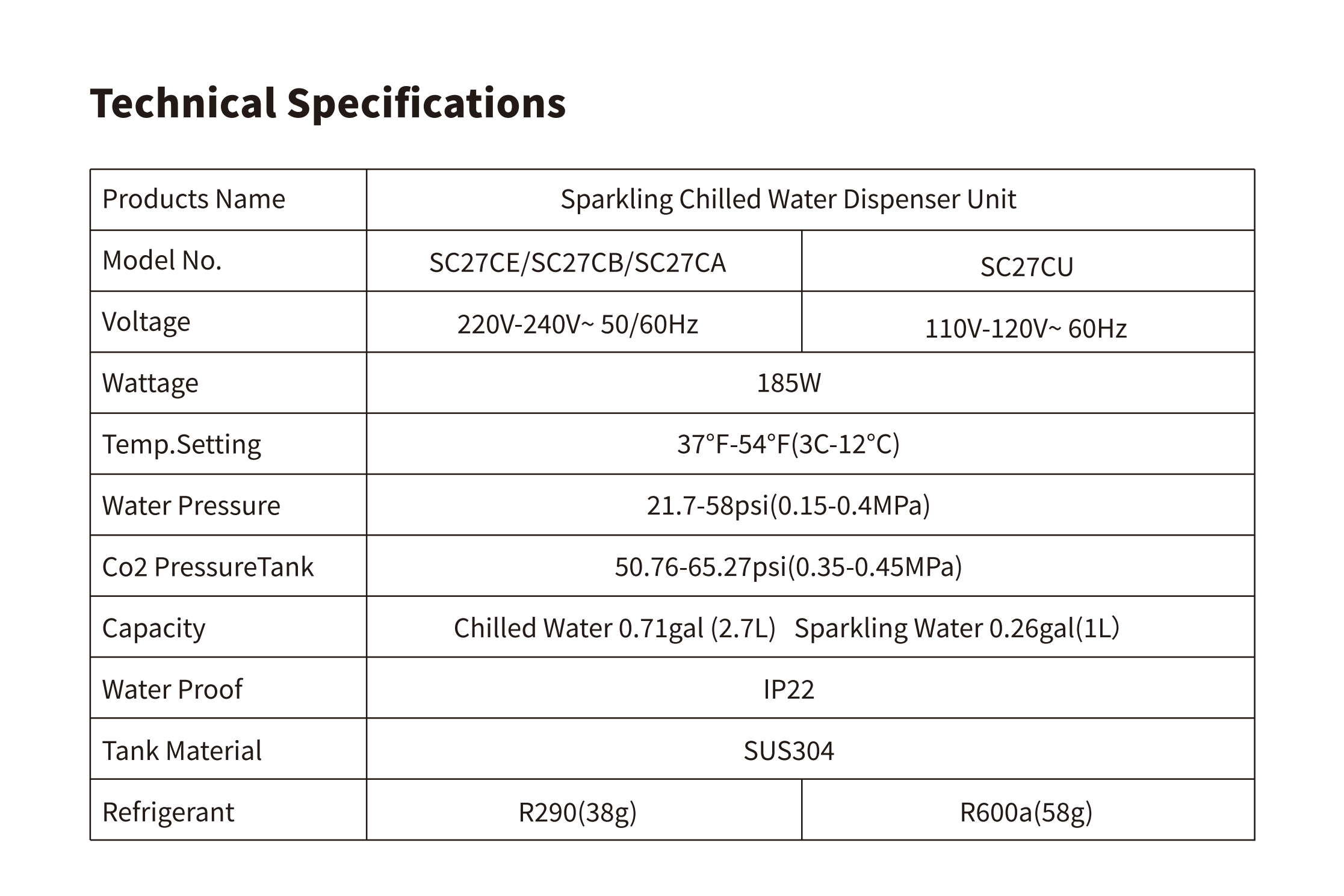

Product Specifications

Model No.
SC27CE / SC27CB / SC27CA
Voltage
220V-240V~50/60Hz
Model No.
SC27CU
Voltage
110V-120V~60Hz
Wattage
185W
Temp.Setting
37°F-54°F(3C-12°C)
Water Pressure
21.7-58psi(0.15-0.4MPa)
Co2 PressureTank
50.76-65.27psi(0.35-0.45MPa)
Capacity
Chilled Water 0.71gal (2.7L) Sparkling Water 0.26gal(1L)
Water Proof
IP22
Tank Material
SUS304
Refrigerant
R290(38g)
Refrigerant
R600a(58g)

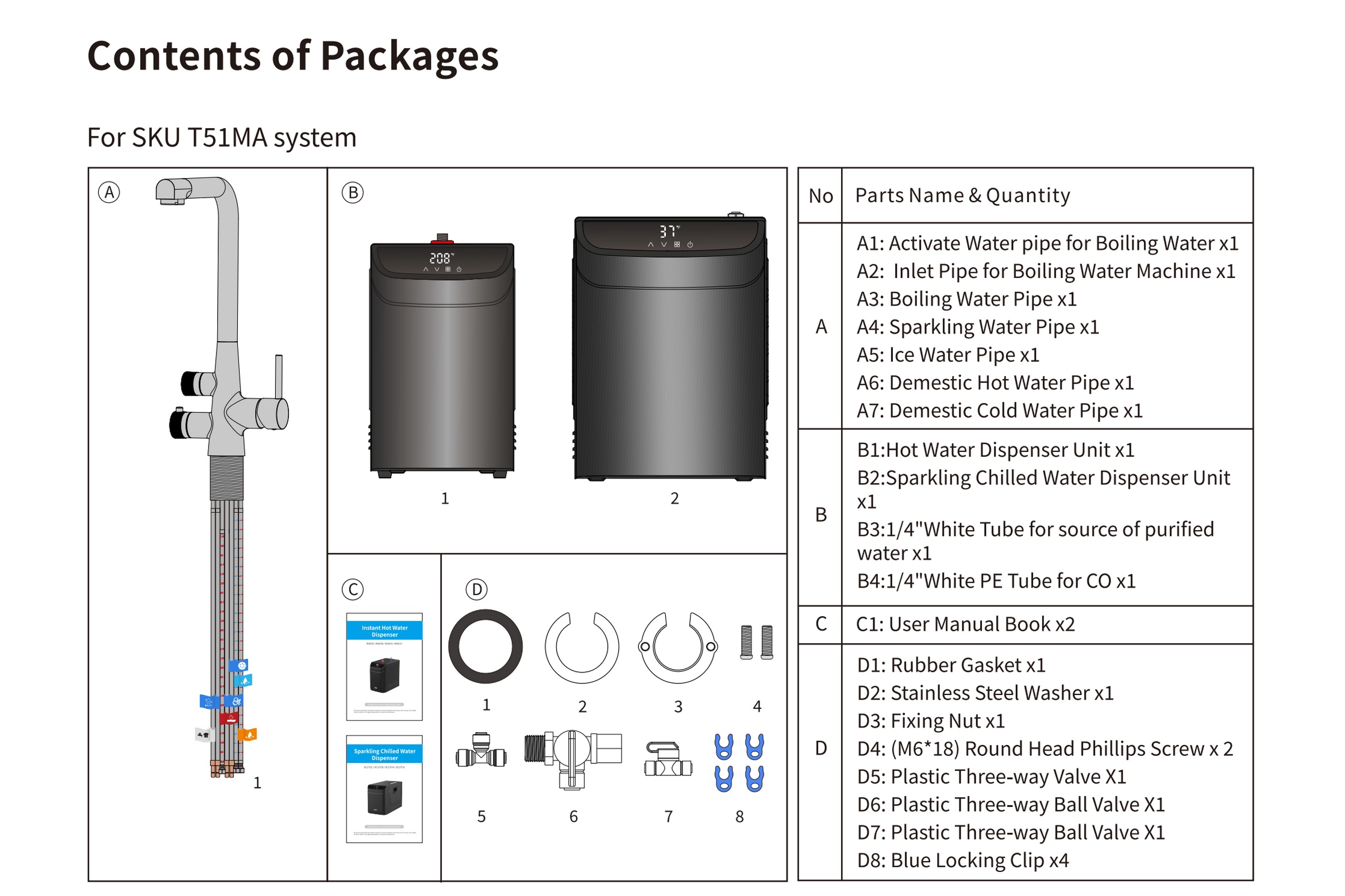

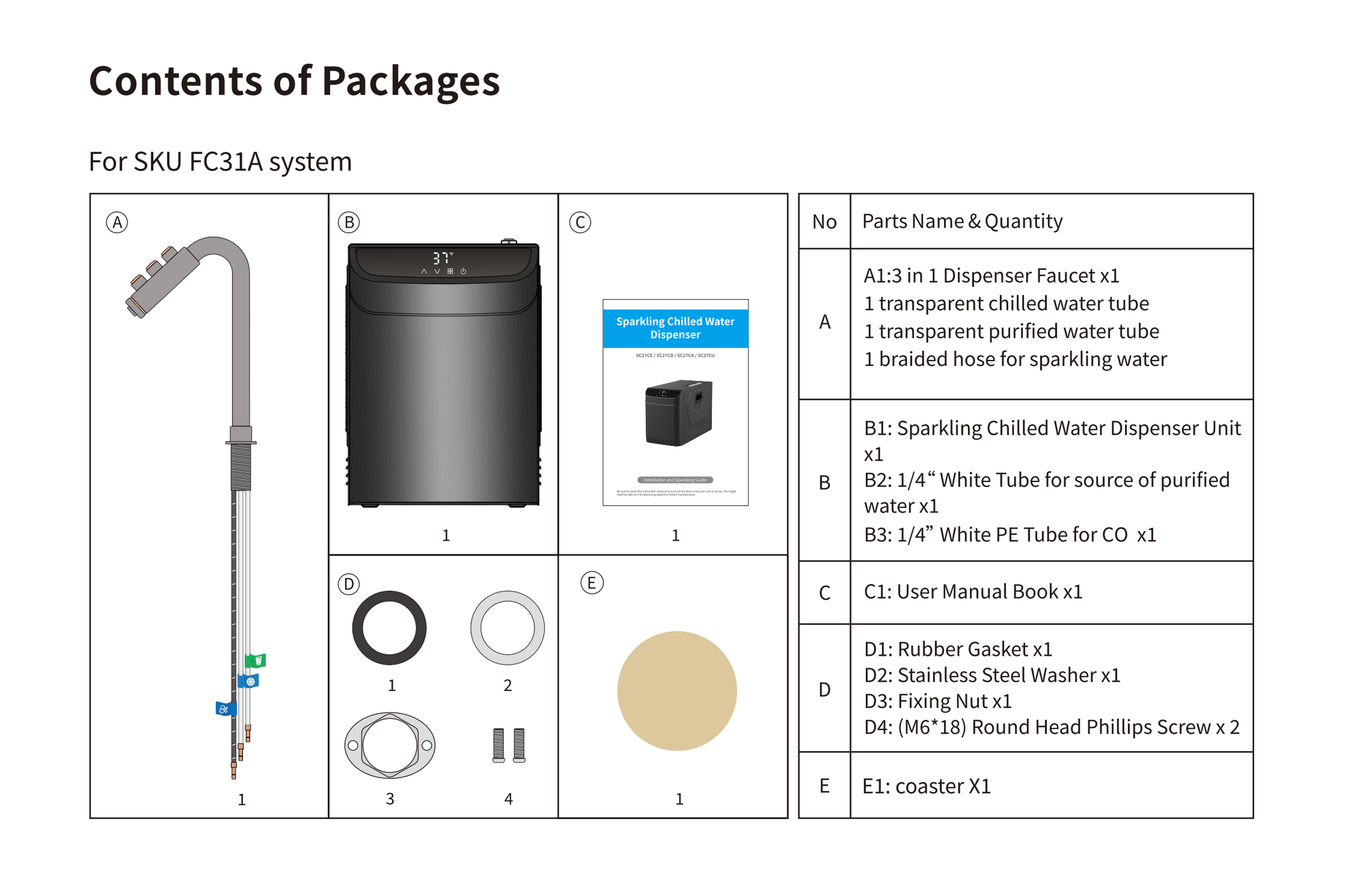

Contents of Packages

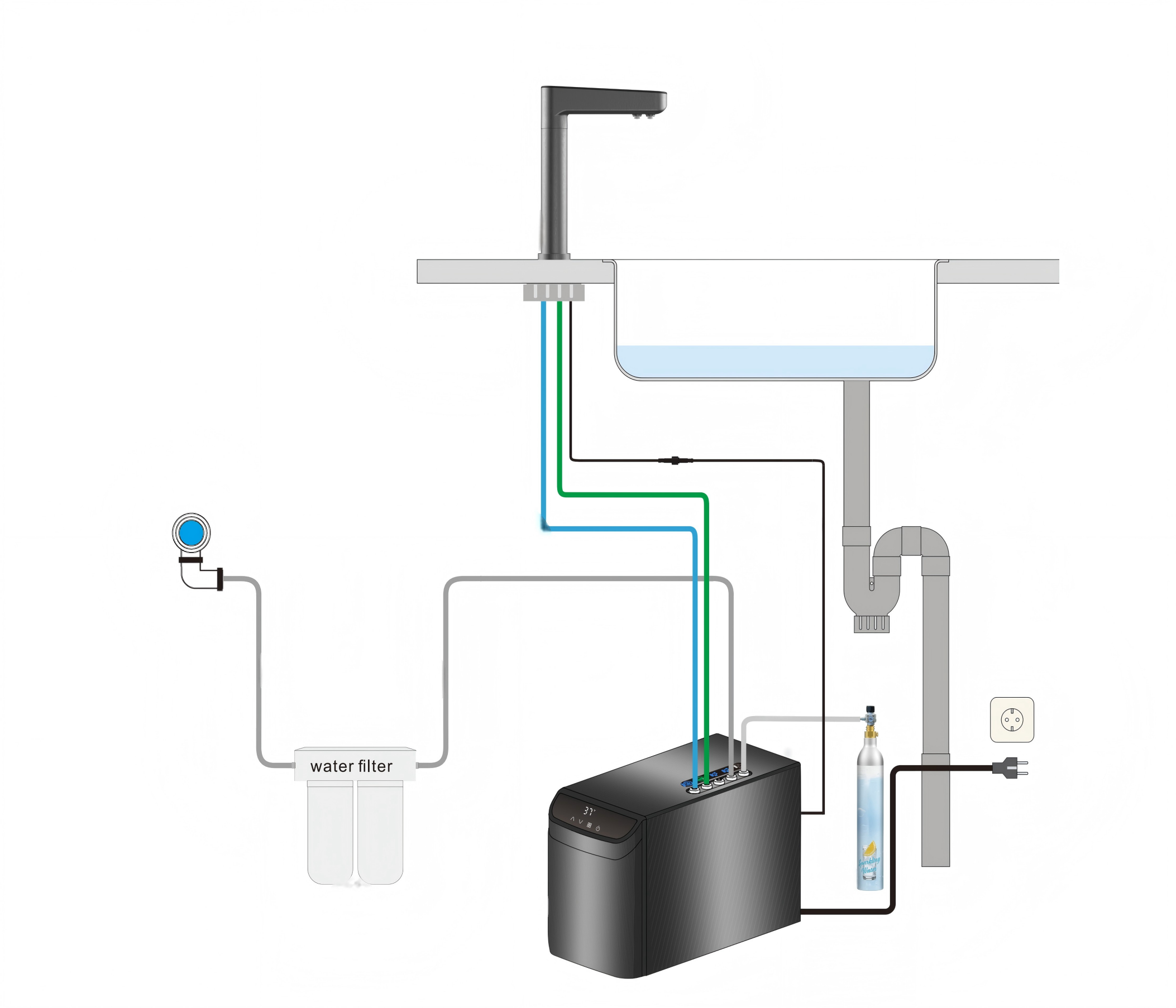

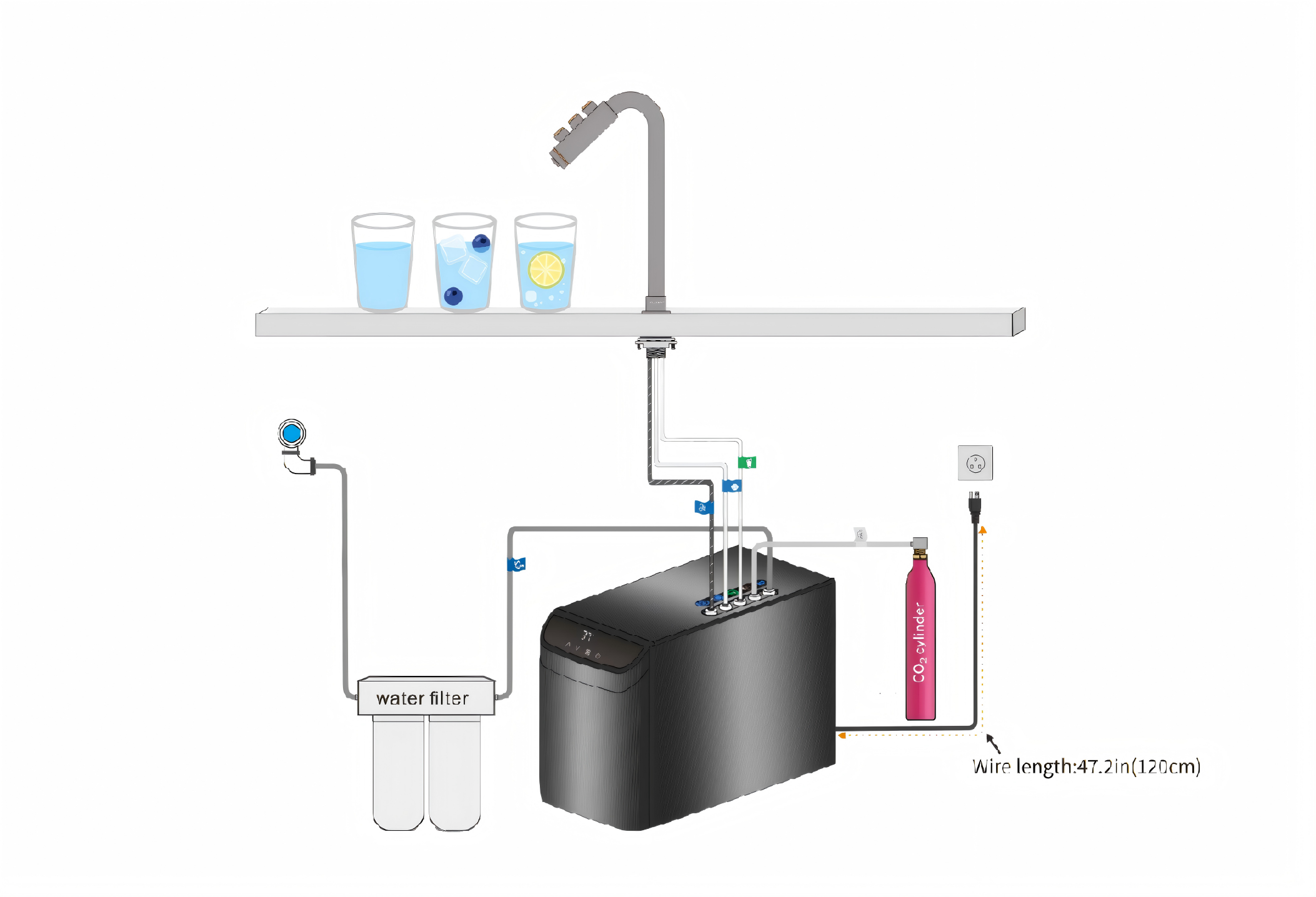

Complete Assembly View

Download And Install The Manual

FAQs

What water combinations are available in your systems?

Our integrated systems offer various combinations of Boiling, Chilled, Sparkling, and Ambient water. We focus on providing a “one-tap” solution that eliminates the need for multiple appliances in a commercial kitchen or office pantry.

Our products feature a modular design that pairs perfectly with external professional filtration systems. This modular approach provides greater flexibility, enabling you to select the most suitable filtration capacity and technology based on your local water quality and specific project requirements.

Based on market feedback, we have introduced products in various dimensions. This ensures our systems can be installed within standard cabinetry while maintaining optimal airflow and ventilation for the cooling system.

Yes, our products hold key certifications such as CE and ETL to ensure electrical safety and performance. For specific regional requirements (e.g., INMETRO for Brazil), please contact our project team for detailed compliance documentation.

Our systems are specifically engineered for light commercial environments, such as specialty cafes, executive offices, and boutique showrooms. For these professional settings, our systems provide a perfect balance of high-performance output and sleek design. While they excel in these areas, for massive-scale public catering, we recommend consulting our team to ensure the capacity meets your specific peak-demand requirements.

We provide comprehensive installation manuals, video tutorials, and remote technical consultations. Our modular design simplifies troubleshooting, and we offer dedicated support via professional communication channels to resolve any issues promptly.

We are committed to ensuring the long-term reliability of our systems through:

Critical Component Support: We maintain a ready stock of essential parts like faucet cartridges and control boards for quick dispatch.

Modular Replacement: Our system’s modular design allows for efficient component or unit swapping to minimize downtime.

Expert Guidance: Our technical team provides direct, professional consultation to help your local team resolve any operational issues swiftly.

By providing instant boiling and sparkling water, our systems significantly reduce the reliance on single-use plastic bottles and minimize water waste through precise dispensing.

We don’t just sell hardware; we provide a “Flows right” solution. Our focus on premium design, technical reliability, and professional B2B support ensures a long-term asset for your commercial space rather than just a temporary appliance.
